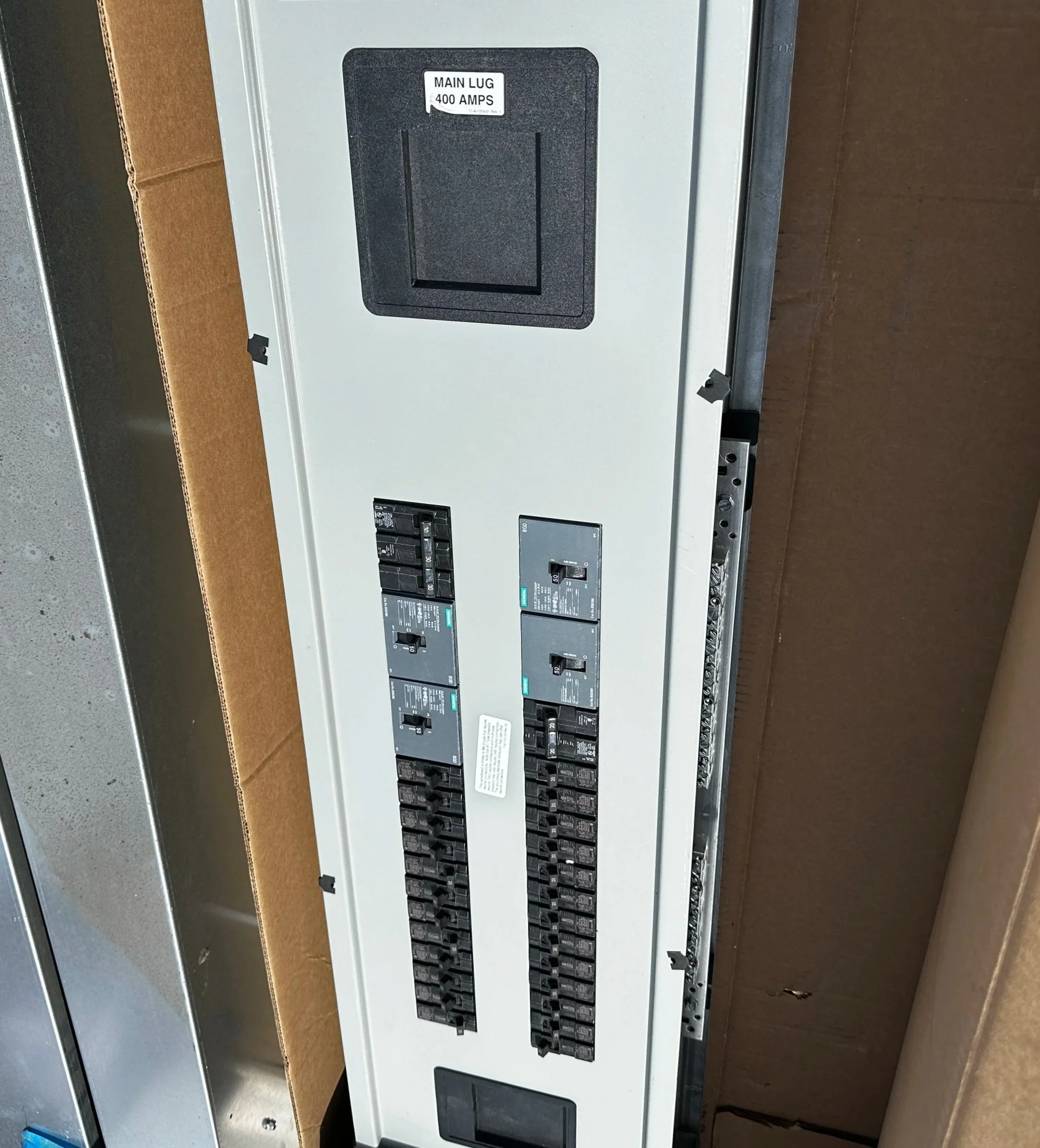

This is a brand-new, commercial-grade electrical distribution panelboard manufactured by Siemens. It is designed for 3-phase power systems and comes pre-configured with select branch circuit breakers.
Condition: Brand New
Manufacturer: Siemens

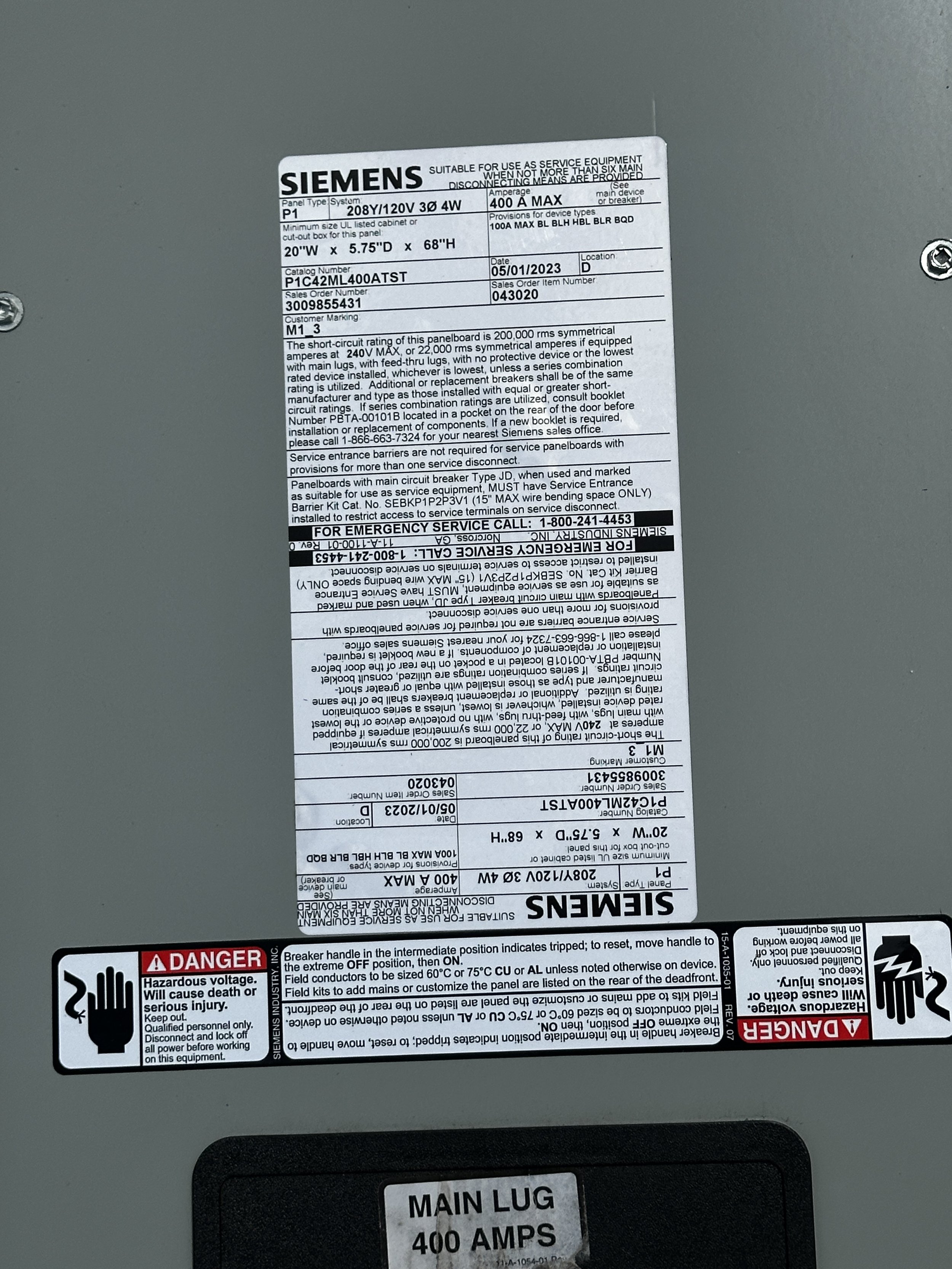

Catalog Number: P1C42ML400ATST
Panel Type: Next Gen P1 Series
Main Configuration: Main Lug Only (MLO)
Amperage Rating: 400 Amp Max
Voltage Rating: 208Y/120V AC
Phase / Wiring: 3-Phase, 4-Wire
Total Circuits: 42-Circuit capacity
Bus Material: Tin-plated Aluminum
Short-Circuit Rating: Up to 200,000 AIC (rms symmetrical amperes at 240V Max)
Minimum Cabinet Dimensions: 20" W x 5.75" D x 68" H

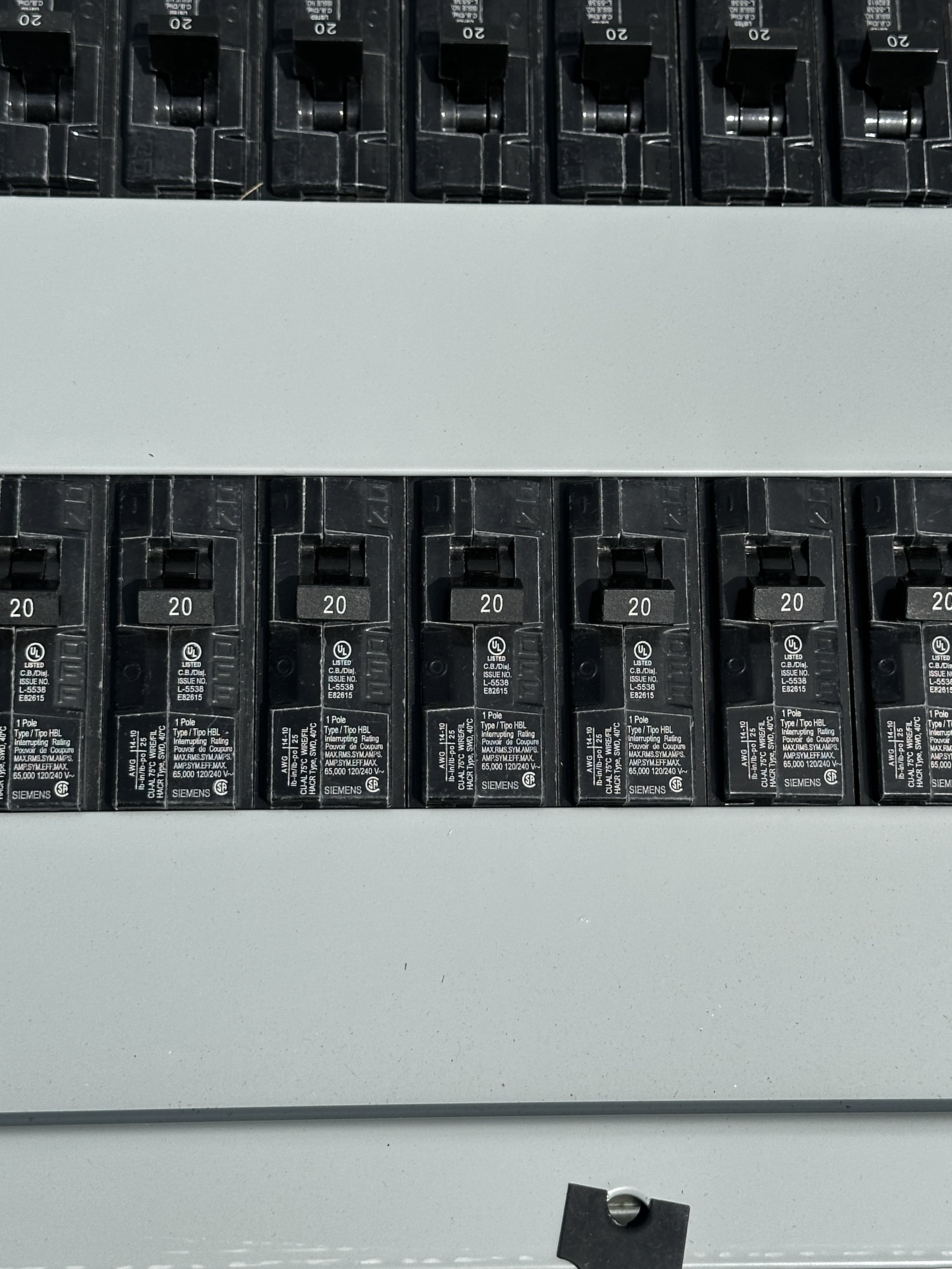

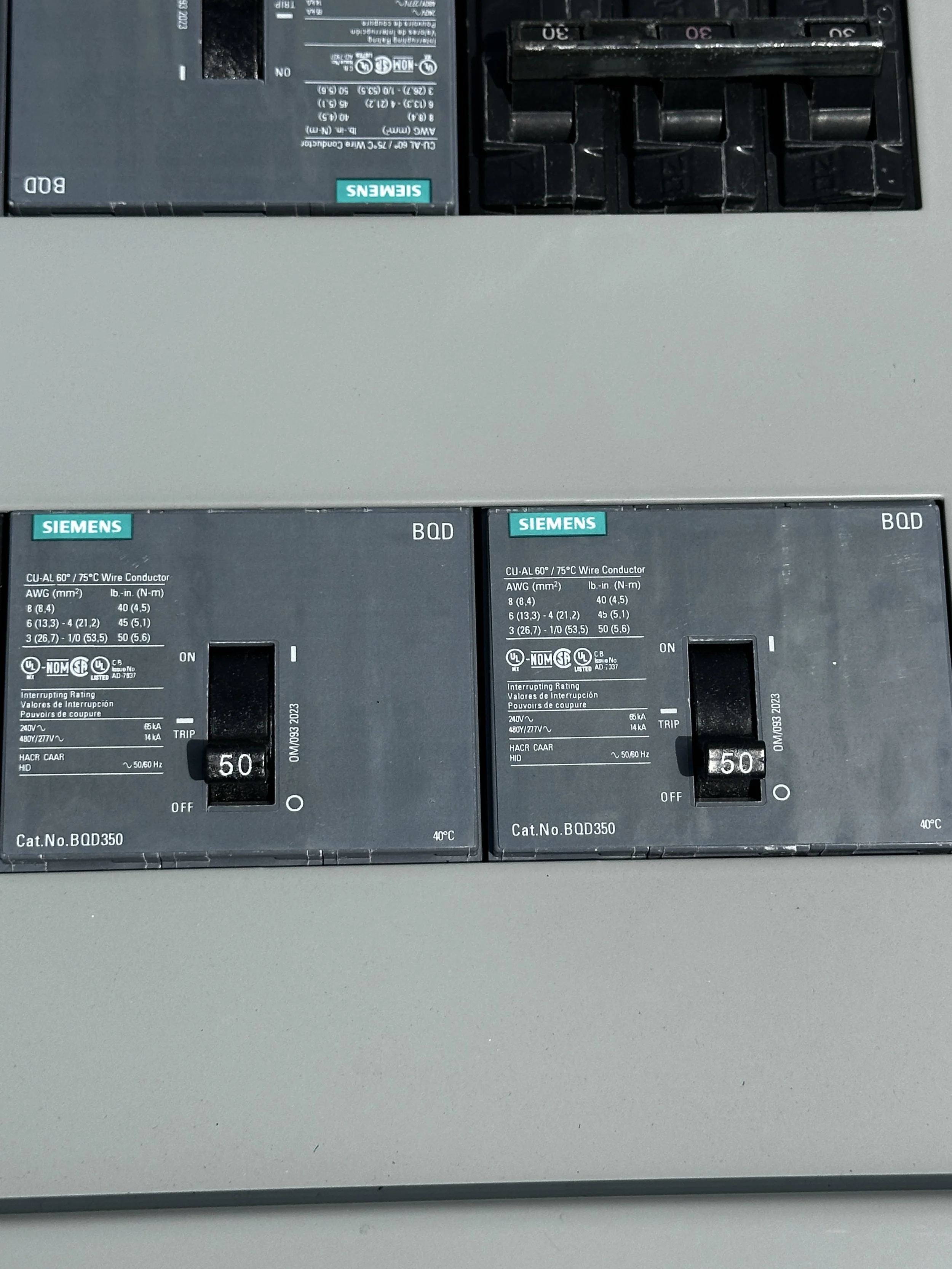

Pre-Installed Breakers: Includes pre-installed 20-Amp and 50-Amp circuit breakers.
Provisions: Accepts Siemens BL, BLH, HBL, BLR, and BQD type circuit breakers (100A Max).
